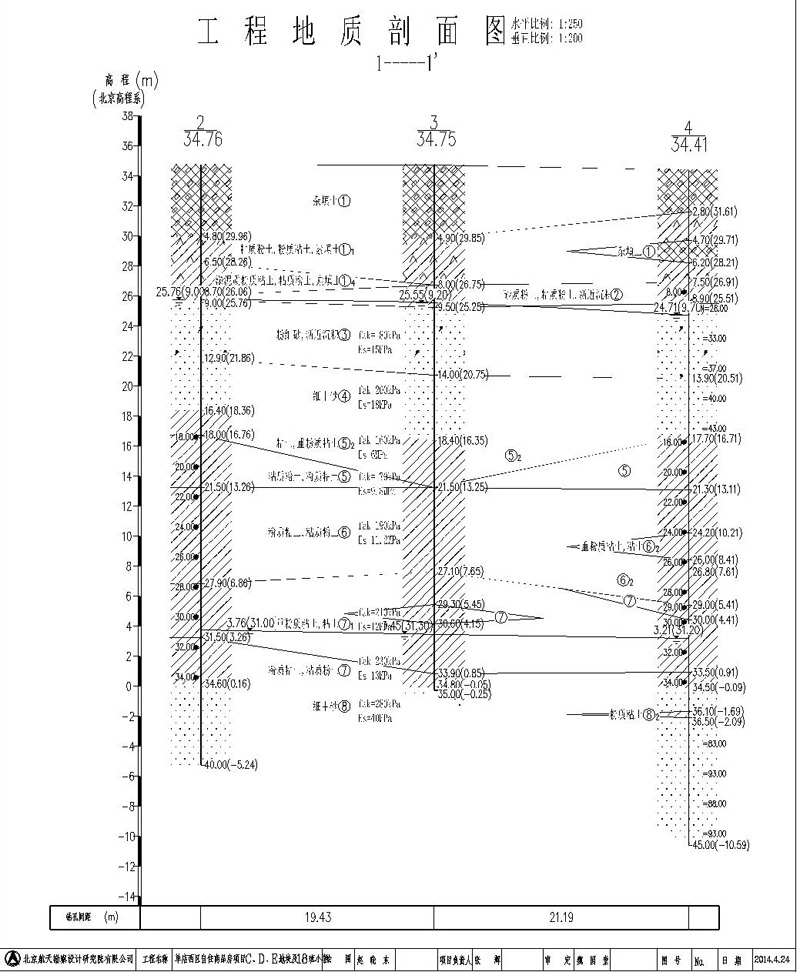

北京市朝陽區東壩鄉單店村剖面圖----下載
擬建場地位于朝陽區東壩鄉單店村
物理力學性質參數一覽表
地層
fka
(kPa)
Es
p0 ~p0+0.1
(MPa)
Es
p0 ~p0+0.2
(Mpa)
Es
p0 ~p0+0.3
(Mpa)
Es
p0 ~p0+0.4
(Mpa)
人工填土
①雜填土
①1粘質粉土/粉質粘土,素填土
①2層粉細砂素填土
①3粘質粉土/粉質粘土,素填土
①4層淤泥質粉質粘土/粘質粉土,素填土
新近沉積
②砂質粉土/粘質粉土
140
6.0
8.0
8.5
9.5
②1粉質粘土
110
4.5*
5.0*
5.5*
6.0*
②2重粉質粘土/粘土
90
4.5*
5.0*
5.5*
6.0*
②3粉砂
140
12*
③粉細砂
180
15.0*
一般第四紀沉積層
④細中砂
200
18.0*
④1粉質粘土
140
5.0*
5.5*
6.0*
6.5*
④2砂質粉土
160
6.0*
7.0*
7.5*
8.0*
⑤粘質粉土/粉質粘土
170
8.5
9.8
10.9
11.8
⑤1砂質粉土
190
9.5*
10.0*
10.5*
11.0*
⑤2粘土/重粉質粘土
160
5.5
6.0
6.6
7.1
⑤3粉砂
200
18.0*
⑥粉質粘土/粘質粉土
190
10.2
11.2
12.0
12.9
⑥1砂質粉土
200
9.5*
10.0*
10.5*
11.0*
⑥2重粉質粘土/粘土
170
9.8
10.4
11.0
11.6
⑥3粉細砂
230
20*
⑦粉質粘土/粘質粉土
230
12.2
13.0
13.9
14.8
⑦1重粉質粘土/粘土
210
11.4
12.0
12.7
13.4
⑦3粉細砂
260
25*
⑧細中砂
280
40.0*
⑧1圓礫
300
55*
⑧2粉質粘土
230
10.0*
10.5*
11.0*
11.5*
樁設計參數一覽表
地層
巖土名稱
樁的極限側阻力標準值qsik(kPa)
樁的極限端阻力標準值qpk(kPa)
②
砂質粉土/粘質粉土
55
②1
粉質粘土
60
②2
重粉質粘土/粘土
45
②3
粉砂
50
③
粉細砂
60
800
④
細中砂
70
1000
④1
粘質粉土/粉質粘土
55
500
④2
砂質粉土
55
⑤
粘質粉土/粉質粘土
55
500
⑤1
砂質粉土
60
⑤2
粘土/重粉質粘土
70
⑤3
粉砂
60
⑥
粘質粉土/粉質粘土
65
1200
⑥1
砂質粉土
65
⑥2
重粉質粘土/粘土
70
⑥3
粉細砂
60
⑦
粉質粘土/粘質粉土
70
1300
⑦1
重粉質粘土/粉質粘土
80
1100
⑦2
砂質粉土
75
⑦3
粉細砂
60
⑧
細中砂
80
1500
⑧1
圓礫
135
3000
⑧2
粉質粘土
70
1400
